How to Choose a Food Metal Detector for Your Company

Ideal for high-speed production lines, these detectors continuously scan products as they move along a conveyor belt. They're commonly used at the end of the line to catch any contaminants before packaging.



1. Understand Your Production Environment



Before diving into technical details, start by analyzing your production process. Ask yourself:



- What types of products are you processing?

Different products—from dry snacks and cereals to wet, high-moisture foods—create varying background signals that can affect detector performance. For example, wet products or those with high salt content might generate higher "product effect" signals that can lead to false rejects.



- Where will the detector be installed?

The optimal placement could be at the start, middle, or end of your production line. In many cases, placing the detector after packaging is best because it minimizes the risk of contaminated products reaching consumers.



- What are your environmental conditions?

Consider factors such as temperature, humidity, and potential exposure to water or corrosive chemicals. Detectors used in washdown areas should have high Ingress Protection (IP) ratings—ideally an IP69K rating for high-pressure, high-temperature cleaning environments.



Understanding these parameters will help you narrow down the type and configuration of the corrugated box business that best fits your needs.





2. Know the Different Types of Metal Detectors



Food metal detectors come in various designs, each optimized for specific applications:

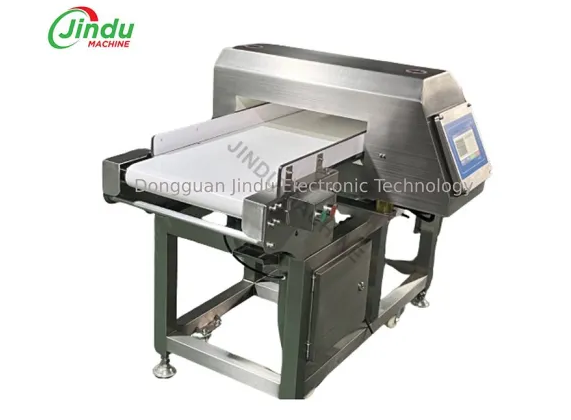

- Conveyorized Detectors:

Ideal for high-speed production lines, these detectors continuously scan products as they move along a conveyor belt. They're commonly used at the end of the line to catch any contaminants before packaging.



- Gravity-Fed Detectors:

Best suited for inspecting loose powders, granules, or bulk materials, these units use gravity to feed the product through the detection zone.



- Pipeline Systems:

Designed for liquid products, these detectors inspect items as they are pumped through a pipe. They are especially useful for beverages and other liquid foods.



- Throat-Style Detectors:

Often integrated into automated packaging lines, throat-style units are effective when product passage must be verified rapidly.



Selecting the correct type depends on your production process, product characteristics, and the specific contaminants you need to detect.



3. Assess Detector Sensitivity and the "Product Effect"



Sensitivity Requirements



The sensitivity of a metal detector is its ability to detect even very small metal fragments. However, higher sensitivity can sometimes result in false rejects—products flagged as contaminated even when they're not. Key points to consider include:



- Type of Metals to Detect:

Different detectors are calibrated for various metal types. Ferrous metals (which contain iron) are generally easier to detect than non-ferrous metals (like aluminum or copper) or non-magnetic stainless steel. If your process might introduce stainless steel fragments (commonly from equipment), ensure the detector is capable of picking up these hard-to-detect particles.



- Aperture Size:

The distance between the product and the detector's sensing coils is crucial. A smaller aperture increases sensitivity because the product is closer to the detection field. However, too small an aperture may not accommodate all product sizes.



- Product Effect:

Foods with high moisture, salt content, or density can interfere with the detector's electromagnetic field, leading to false rejects. Modern detectors often feature product signal suppression and multi-simultaneous frequency technology to differentiate between actual contaminants and product signals.



Setting up your detector for the right sensitivity is a balance between detecting harmful metal fragments and minimizing false rejects that could slow down production and waste good product.



4. Regulatory Compliance and Quality Assurance



Food manufacturers must adhere to strict regulations such as those set by the FDA and HACCP guidelines. Your metal detector should not only meet these regulations but also support a robust quality assurance program:



- Certification and Standards:

Look for detectors that have undergone rigorous testing and certification to ensure they meet or exceed regulatory standards.



- Documentation and Record Keeping:

An effective system should include features for logging test results, calibration records, and routine maintenance data. This documentation is vital for audits and for maintaining consistent product safety.



Implementing a metal detection system that is compliant with industry standards can help mitigate risks associated with product recalls and legal liabilities.



5. Integration and User Interface



A metal detector should seamlessly integrate with your existing production line and other quality control equipment, such as checkweighers and packaging systems. Consider the following:



- User Interface:

The detector's interface should be intuitive and user-friendly. This allows operators to quickly calibrate the system, adjust sensitivity settings, and review test results. An effective interface reduces training time and minimizes human error.



- Data Communication:

Modern systems often offer Ethernet or wireless connectivity that allows for remote monitoring and diagnostics. Integration with a plant's network can facilitate real-time performance tracking and automated alerts for any issues that arise.



- Automatic Calibration and Performance Verification:

Features like auto-calibration and built-in performance verification routines help ensure the detector maintains peak performance with minimal manual intervention.



6. Maintenance, Durability, and Cost Considerations



Durability and Maintenance



Metal detectors in food production are subject to rigorous cleaning protocols and harsh operating conditions. To ensure longevity:



- Material Construction:

Look for detectors constructed with high-quality stainless steel and durable components that can withstand frequent washdowns and physical impacts. The IP rating is a key indicator of washdown capability.



- Ease of Maintenance:

Choose a system with accessible parts, clear documentation, and user-friendly maintenance procedures. Regular preventive maintenance is essential to avoid downtime and costly repairs.



Cost Effectiveness and ROI



While high-end detectors come with advanced features, assess your actual needs to avoid overinvestment:



- Budget and Total Cost of Ownership:

Consider not just the purchase price but also ongoing maintenance, calibration, and potential downtime costs. A system that reduces false rejects and minimizes production stoppages will have a better return on investment over time.



- Scalability:

As your company grows or product lines change, the detector should be versatile enough to adapt without significant additional costs.



Balancing cost with performance and durability is key to choosing a system that meets your needs without breaking the bank.



Conclusion



Choosing the right food metal detector for your company is a multifaceted decision that involves understanding your production environment, evaluating detector sensitivity, ensuring regulatory compliance, and considering long-term maintenance and cost effectiveness. By carefully assessing these factors and partnering with a reputable vendor, you can protect your brand, safeguard consumer health, and maintain smooth production operations.
