Razor Barbed Wire Mesh Machinery

Razor barbed wire machine, also called blade barbed wire machine, Concertina razor barbed wire machine,comprises two production lines: The punch line and the assembly Line.

Rockfall protection netting is a formidable deterrent in modern security. But how is this effective barrier created?
Let's delve into the world of concertina razor barbed wire machines and the process of crafting these high-security fences.

Razor barbed wire mesh machine, also called blade barbed wire machine, Concertina razor barbed wire machine.
Concertina razor barbed wire machine comprises two production lines: The punch line and the assembly Line.
The punch line is used to punch the Galvanized sheet, becoming a wire with a blade shape. The assembly line combines an inner round with a blade-shaped wire. This type has the advantages of easy operation, easy maintenance, high speed, and low energy consumption.

Under the current security environment, razor wire protection fences have become an important protection solution due to their high security, strong deterrence, and durability, and are widely used in border, military, industrial,l and civil security fields.

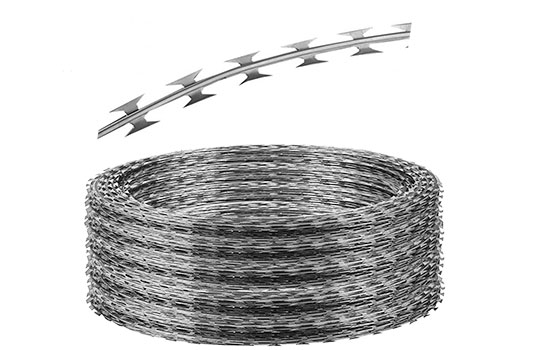

Razor wire mesh fences are made of sharp blades and are high-strength protective fences. They are difficult to cut and climb, and can effectively prevent illegal intrusion activities.

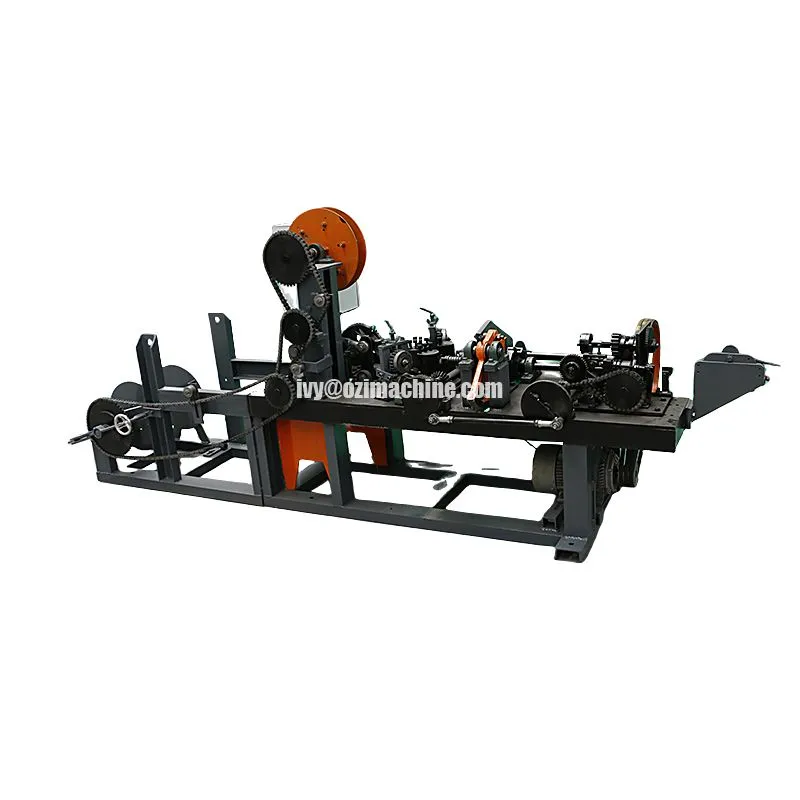

The razor wire mesh machinery is an automated equipment specially used for producing razor barbed wire, which is suitable for manufacturing high-security protection products such as military protection, border security, prison fences, etc.

The razor wire mesh welding machine is an automated equipment specially used for producing razor wire or razor wire protective fence, which is suitable for large-scale and efficient razor wire welding processing.

How to make razor wire fence?

Wire Wrapping System
The collected razor wires are wrapped or wrapped around the galvanized steel wire (core wire) to form razor wire. And enter the feeding device.

Stepping Feeding Device
Each razor wire mesh welding machine is equipped with two feeding devices, which are placed at an angle to the mesh. The feeding device is controlled by a servo motor, which automatically straightens and cuts the razor wire to a fixed length, and arranges it on the chain according to the size of the mesh. The chain is controlled by the motor to move forward, and the distance it moves forward is the size of the mesh.

Welding System
The welding electrode adopts a copper alloy welding head, which is wear-resistant and high-temperature resistant. Through resistance welding technology, the alternately arranged razor wires are welded to form a razor wire structure.
Cutting and Rolling System
The razor wire mesh can be cut into mesh sheets according to customer requirements. The pneumatic cutting system has smooth and beautiful cuts and high efficiency. It can also be automatically rolled into a roll for easy transportation.

Razor Wire Mesh Application:

Military & Defense
Border & Checkpoint Security
Prison & Detention Facilities
Airports & Transportation Hubs
Industrial & Warehousing
Residential & Private Property
Government & Public Facilities

OZI--as a professional razor wire mesh welding machine manufacturer, KM Factory has always been committed to providing efficient, reliable equipment and comprehensive technical support to global customers.
If you want to get solutions for protective fencing, please contact the OZI factory!
